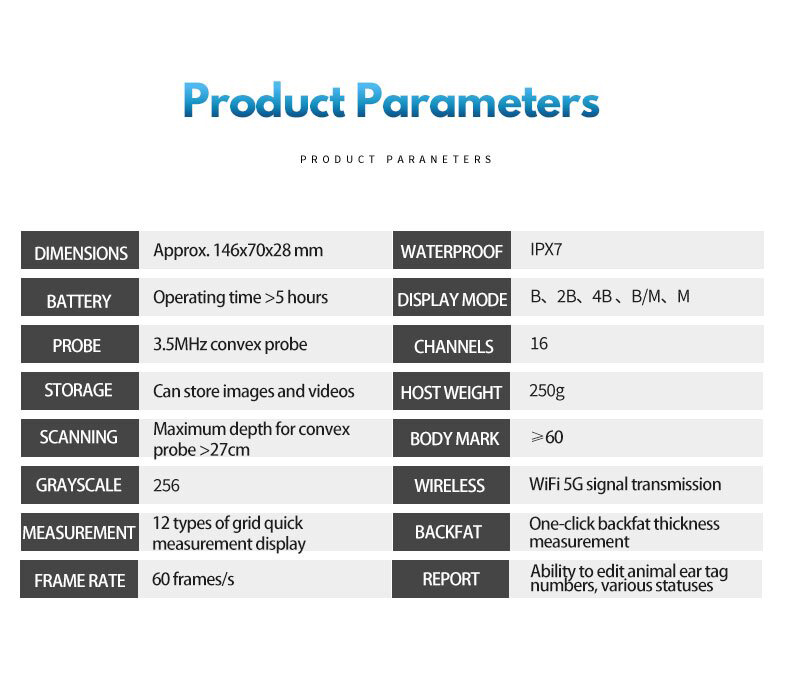

1. Technical parameters

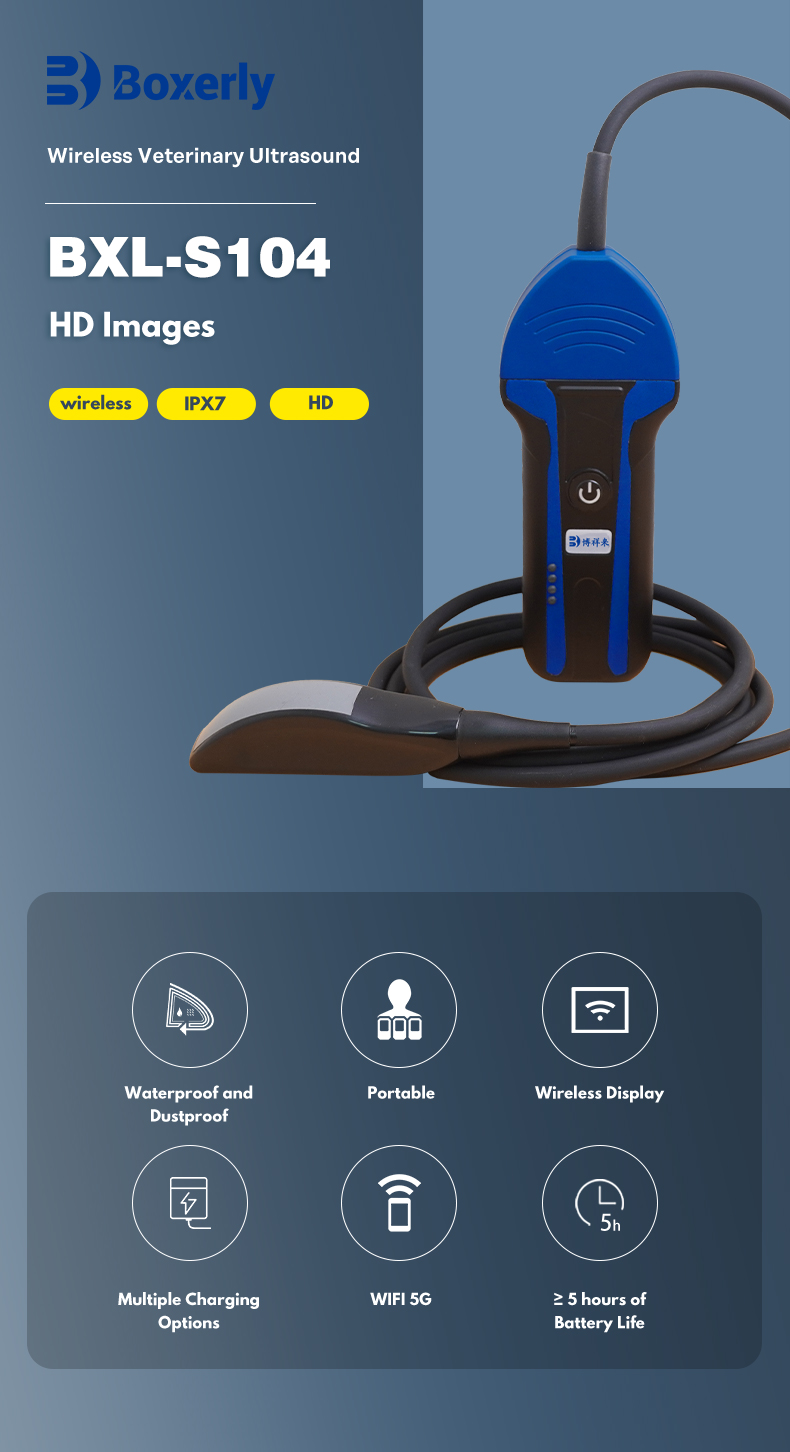

1.1. The whole machine is waterproof and dustproof, with a waterproof level of IPX7; strong and durable

1.2. Fully digital wireless animal-specific ultrasound system, suitable for scanning cattle, sheep, horses, pigs, donkeys, camels, small animals, wild animals and other animals

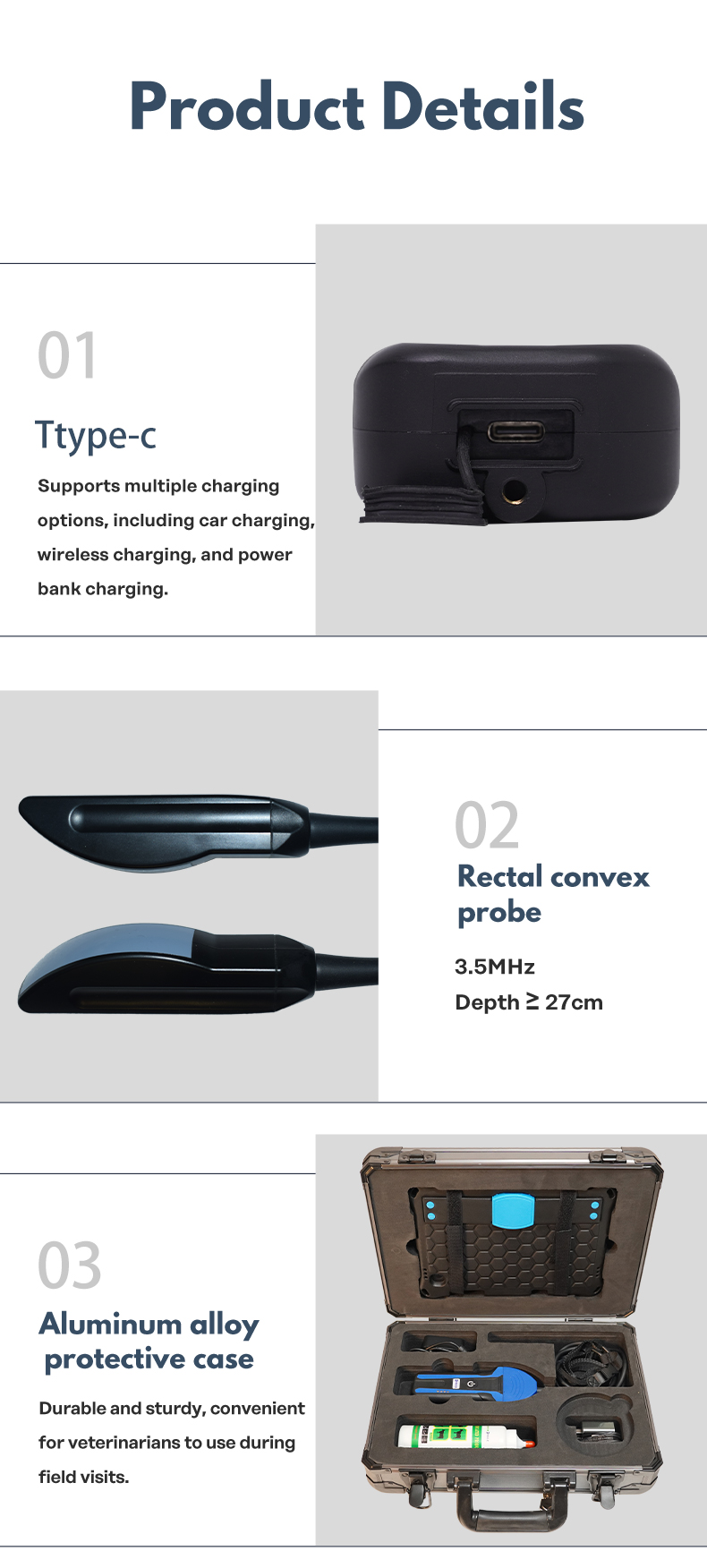

1.3. Built-in lithium battery, working life ≥5 hours. Type-c data cable charging, wireless charging, car-mounted, fast charging, power bank power supply

1.4. The host system comes with a Wi-Fi module to realize wireless transmission mode, 5G transmission

1.5. Wireless connection display supports: iPad tablets, smart phones, laptops, desktop computers. Display size and resolution can be selected

1.6. The display installs free APP wireless display, APP compatible operating systems: Android (Android), Windows (Microsoft)

1.7. Inspection type: The software has built-in inspection preset modes for embryos, ovaries, uterus, urinary system, back fat, and other parts of cattle, sheep, horses, pigs, donkeys and other animals. Each mode can be selected for corresponding inspections and professional measurements. The corresponding host parameters are fixed in each mode. Inspection modes ≥ 30

1.8. Image display mode: B, 2B, 4B, B/M, M and other display modes.

1.9. Harmonic imaging: two gears Frequency: 2.9-5.0MHz Gain adjustment: 0-255 Dynamic range adjustment: 0-15 Transmitting power: 0-3

1.10. Focus: 3-15 13 gear adjustment

1.11. Scanning depth: Maximum depth of rectal convex array probe ≥ 27cm

1.12. Segment gain: TGC eight-segment adjustable, TGC can be adjusted with one key

1.13. Parameter sliding adjustment

1.14. With Chinese and English operation interface

1.15. System grayscale: 256 levels, system dynamic range ≥ 180dB, A/D conversion ≥ 12bit

1.16. Number of channels: 16

1.17. Host startup time: 1 second. The host has a full digital beamformer with a freeze key

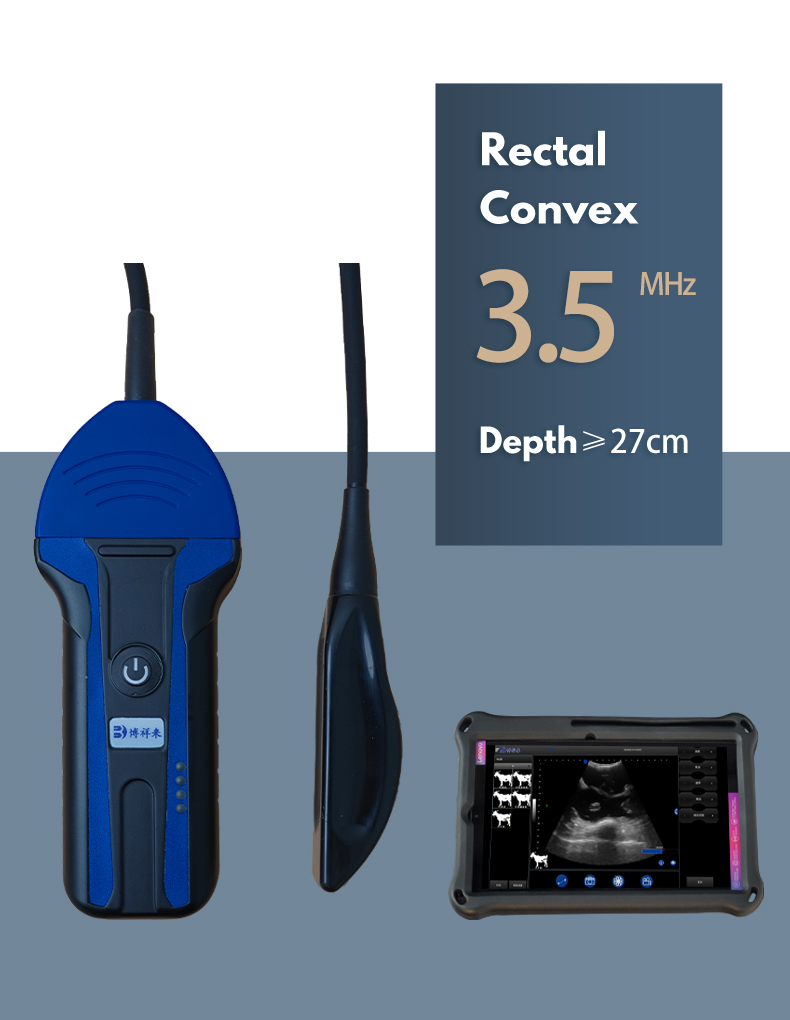

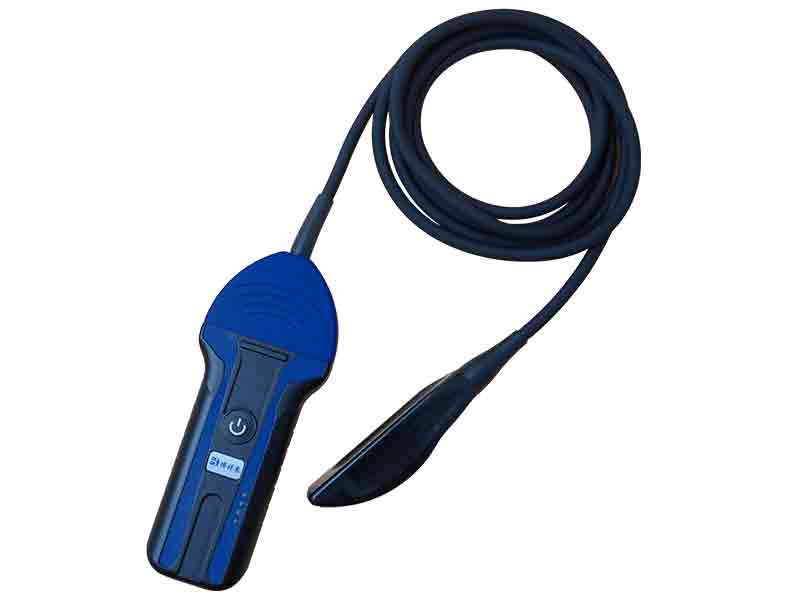

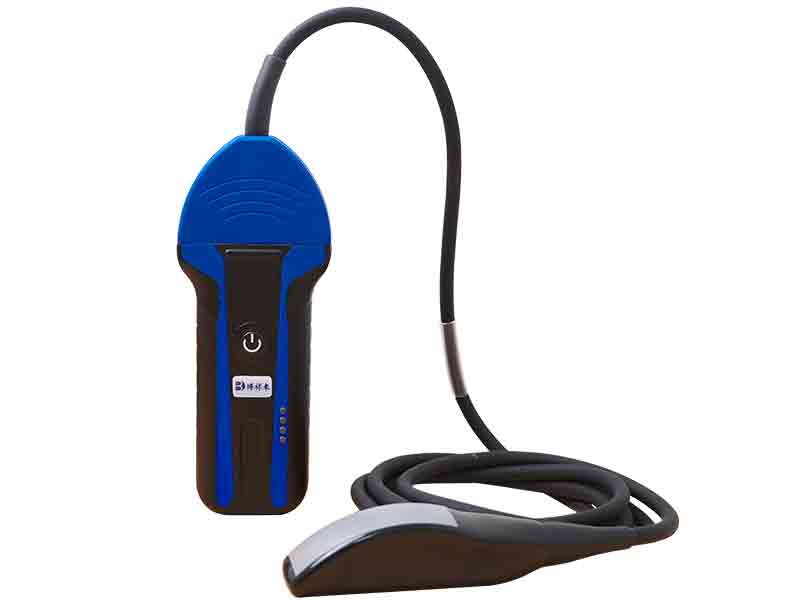

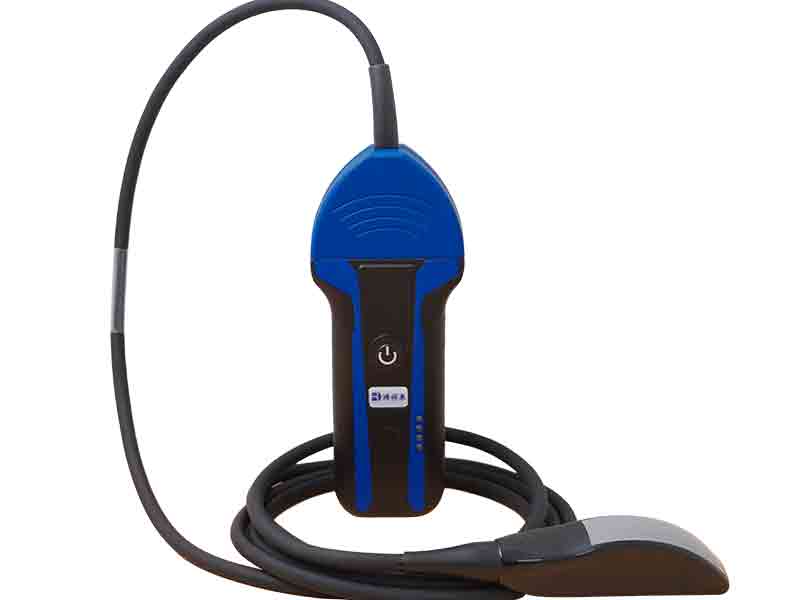

1.18. Host probe: 3.5MHz rectal convex array

1.19. Body markers: cattle (embryo, ovary, uterus, urinary system, backfat, buttocks and other body markers), pigs (embryo, ovary, uterus, urinary system, backfat, buttocks and other body markers), goats (embryo, ovary, uterus, urinary system, backfat, buttocks and other body markers), buffalo, sheep, alpaca, cat, dog and other animals, ≥60 body markers

1.20. Measurement and analysis: supports basic measurements such as distance, circumference, area, circle area, etc., with a variety of animal professional obstetric analysis software packages, ≥30 types of animal obstetric measurements. Various measurement functions such as heart measurement

1.21. How to use the host: It can be clipped to the belt and can be held in hand. How to use the display: wrist, sling

1.22, grid setting fast measurement function, 12 grid fast measurement display; one-button measurement of back fat thickness function

1.23, screw fast fix extension rod, suitable for animal inspection

1.24, multiple system preset functions, B mode imaging can be partially enlarged/reduced

1.25, storage: static image storage and preview, body mark can be added to the image when saving the picture, dynamic movie image storage and playback ≥255 frames, expandable

1.26, animal report: animal ear tag number, various states, etc. can be edited. When saving this animal image, there is a corresponding function of taking animal photos

1.27, host rated input: DC9.0V 2.22A; adapter output: DC9.0V 2.22A

1.28, power supply: 100-240V～0.8A frequency: 50-60Hz

1.29, patented product, patent number:

1.30. Weight: 250g (with probe)

1.31. Image frame rate: 60 frames/second

1.32. Host size: 146×70×28 mm (length×width×height);

1.33. Software version: Animal-specific version

2 Main functions

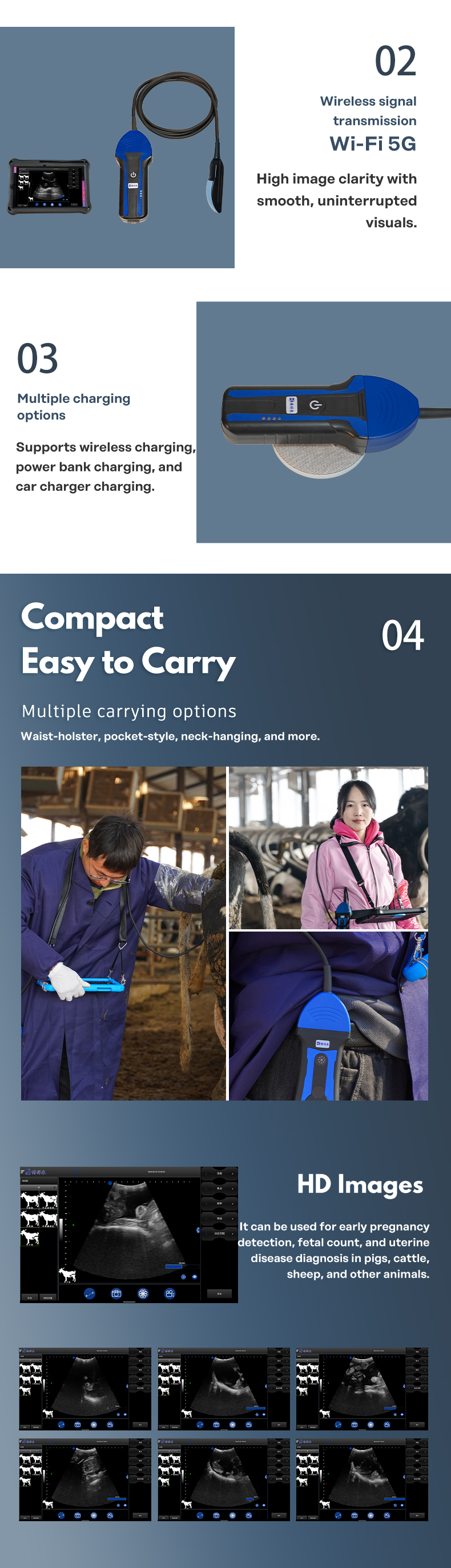

2.1. Wireless WiFi connection to iPad tablets, smart phones, laptops, and desktop computers

2.2. Support full screen function

2.3. Support report preview function

2.4. One-click optimization function

2.5. THI tissue harmonic imaging technology function

2.6. Equipped with digital focusing function

2.7. Speckle noise suppression technology function

2.8. Support spatial composite imaging function

2.9. Support two-dimensional image angle deflection function

2.10. Support parameter sliding adjustment function

2.11. 5G transmission, fast image transmission speed

2.12. Clear judgment of animal pregnancy, uterine disease, ovarian disease, and ovarian detection

2.13. Light weight, easy to carry, and multiple carrying methods

2.14. The operating system supports remote online free upgrade function

2.15. Multiple body marker corresponding parameter setting function

Standard configuration:

Host 1

Flat panel display 1

Flat panel display protective case 1

Cross strap 1

Adapter 1

Learning USB 1

Instruction manual/certificate/warranty card 1 set

Suitcase One

Bottle of coupling agent

Optional accessories:

Wireless charger

Extension rod
