Products Description

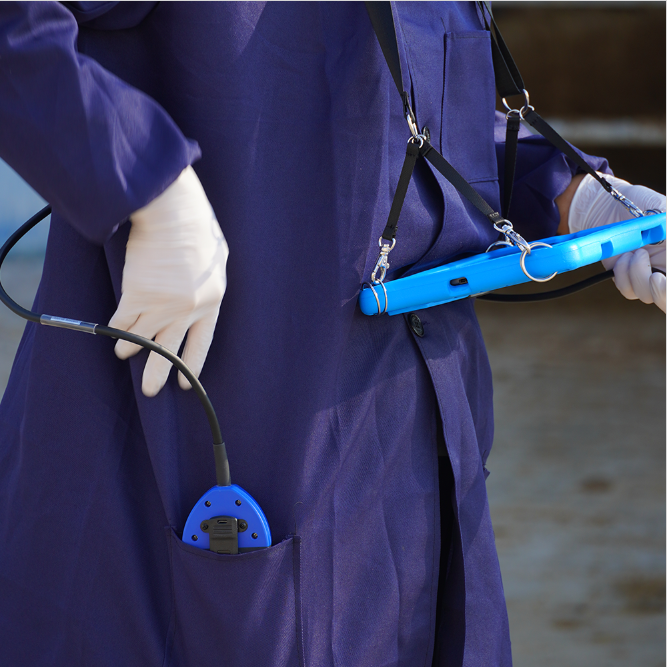

The BXL-S103 is a waterproof and dustproof wireless Veterinary ultrasound system, ultrasound for sheep, that provides clear imaging for detecting pregnancy in sheep, as well as follicle and corpus luteum development.
Tags:Wireless Veterinary UltrasoundVeterinary Ultrasound
Text link:https://www.bxlultrasound.com/pdt/110.html
Technical parameter
Portable Veterinary Ultrasound BXL-V50
Portable Veterinay Ultrasound Machine
Portable USG veterinary ultrasound Machine BXL -V10Ⅲ
BXL-S103 Technical Specifications
Working time: ≥5 hours
Wireless transmission: supported
Image display modes: B, 2B, 4B, B/M,
M Harmonic imaging: two levels
Frequency: 5-10MHz
Gain adjustment: 0-255
Dynamic range adjustment: 0-15
Transmit power: 0-3.
Scanning depth: Maximum depth of rectal linear array probe ≥27cm.
Gain: Eight-stage adjustable
System language: Chinese, English
Grayscale: 256
Channels: 16 Position markers: ≥60
One-key measurement of backfat thickness.
Storage: Storage and preview of static images, storage and playback of dynamic cine images ≥255 frames, expandable
Power supply: 100-240V~0.8A
Weight: 300g (including probe)
Image frame rate: 60 frames per second
Host size: 174×70×28mm
Optional configuration: 6.5MHz sheep rectal probe
