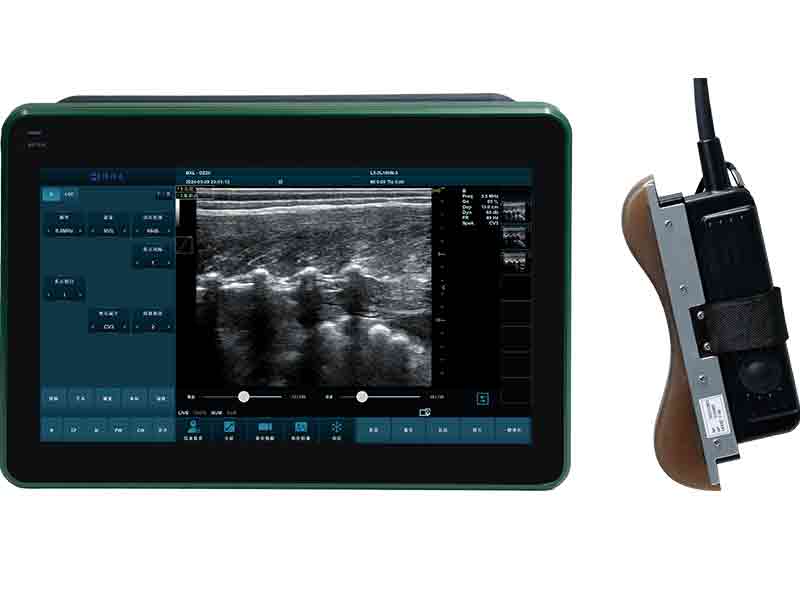

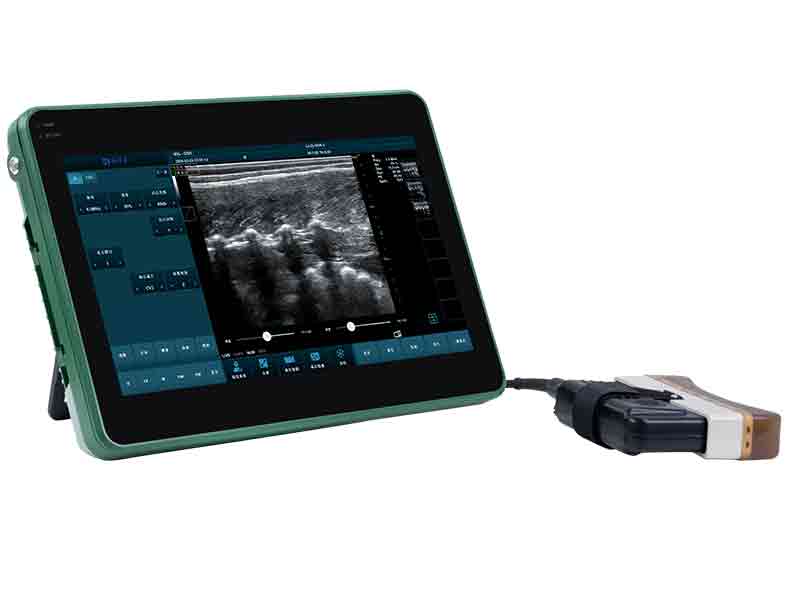

1. Equipment name and model: Fully digital color Doppler ultrasound diagnostic instrument for animals Model: BXL-DZ20

2. Equipment model: Equipment use description

Mainly used for: examination of reproductive organs, back fat eye muscles, abdominal organs, heart, small organs, tendons, transrectal examinations of various animals such as pigs, cattle, sheep, horses, donkeys, camels, dogs, cats, special animals, etc.

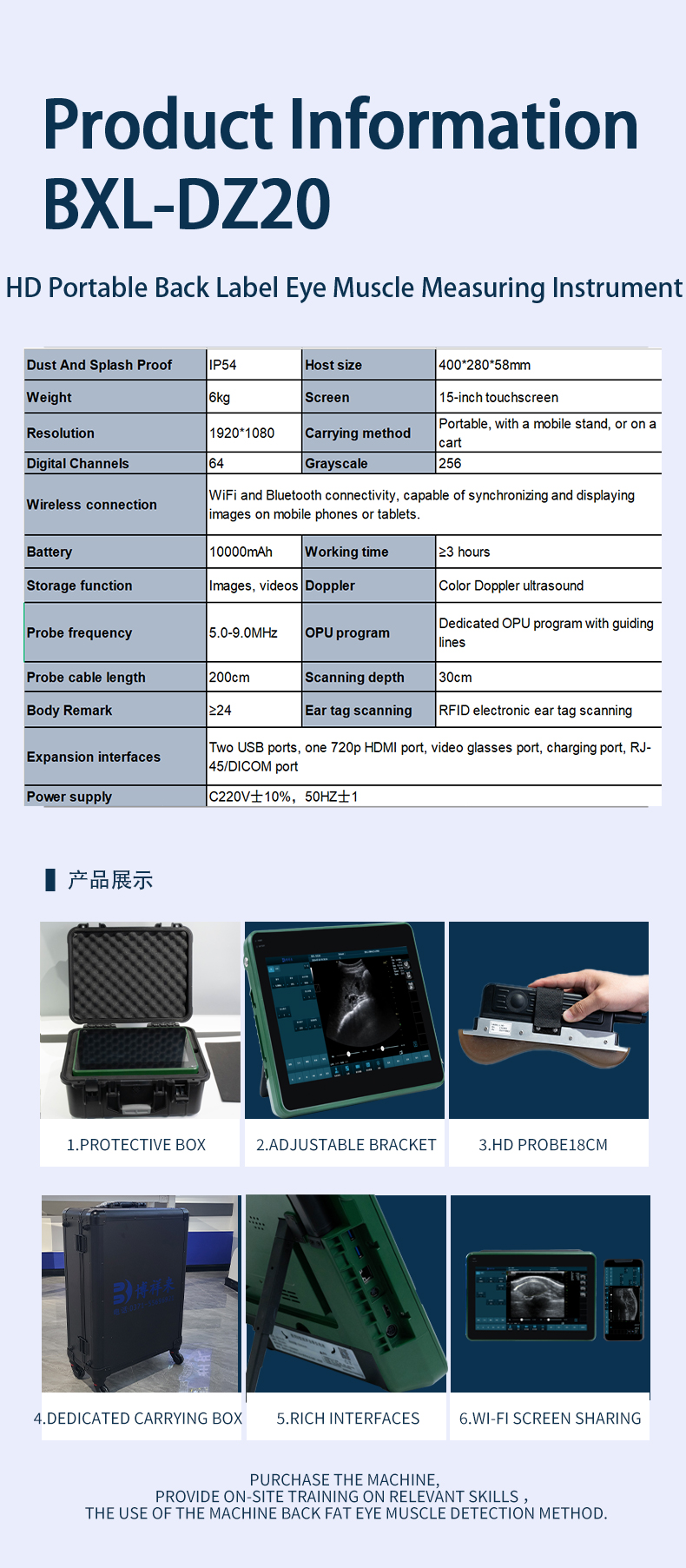

3. Host technical parameters

3.1 Adaptability: waterproof, dustproof, waterproof and dustproof level IP54, ｄｒｏｐ-proof

3.2 Storage and transportation environment: -20°C to +60°C Humidity range: 10%-95%

3.3 Host size: 400*280*58mm

3.4 Host weight: 6kg

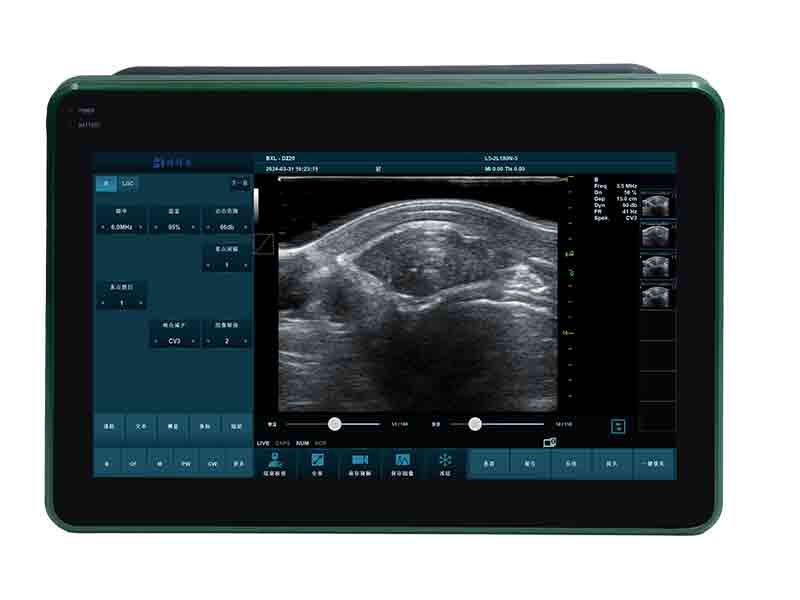

3.5 Host screen size: 15-inch touch screen Resolution: 1920*1080

3.6 Power supply: AC220V±10%, 50Hz±1

3.7 The host has a handle (can be hung), a mobile bracket (adjustable angle), and can be hung on a mobile cart

3.8 Relative elevation angle: 90 degrees, 180 degrees, 270 degrees adjustable

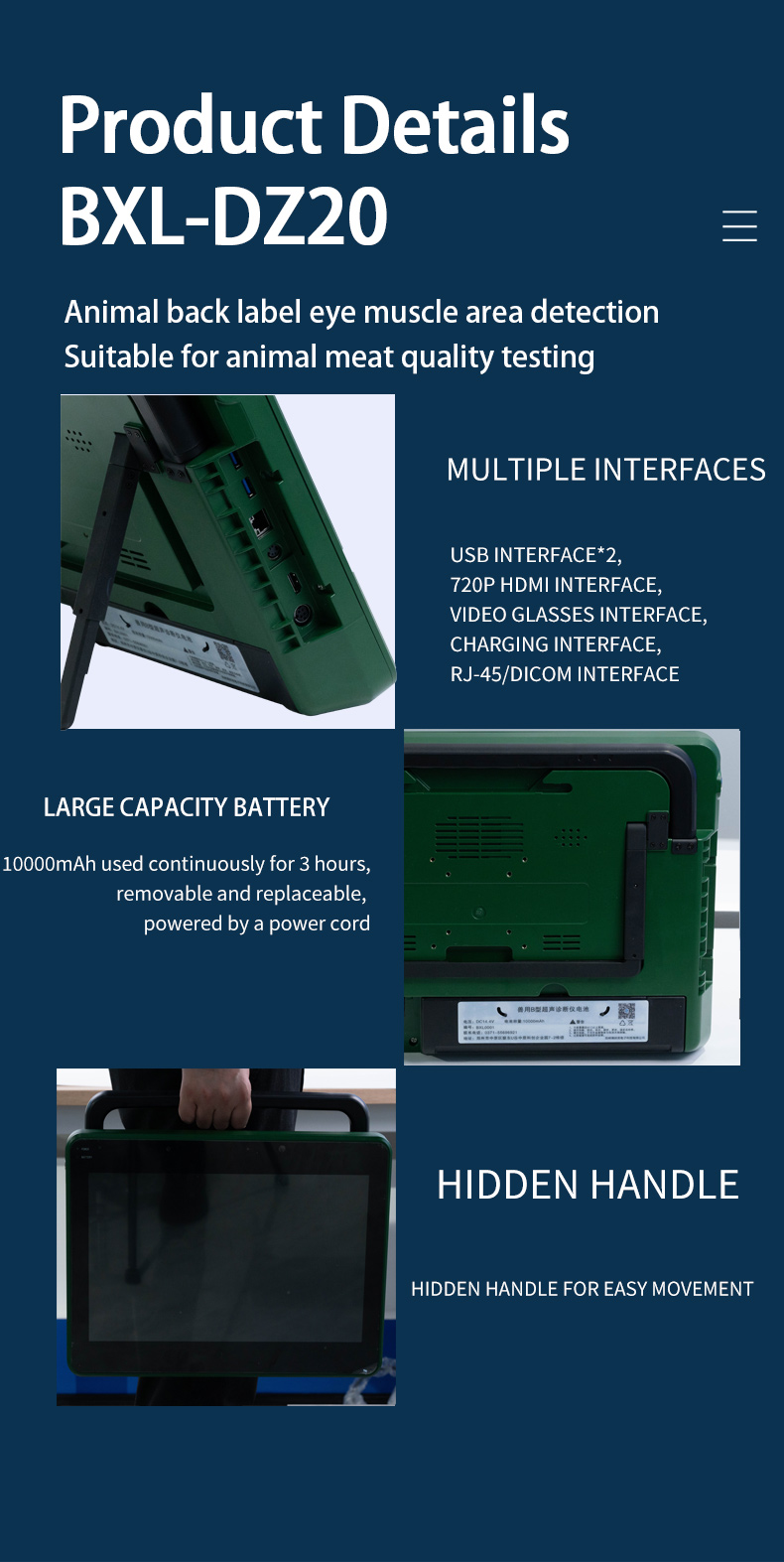

3.9 Expansion interface: two USB interfaces, 720 p HDMI interface, video glasses interface, charging interface, ● HDMI, video output; ● USB interface; ● RJ-45/DICOM interface; ● Support inkjet, laser, video printer

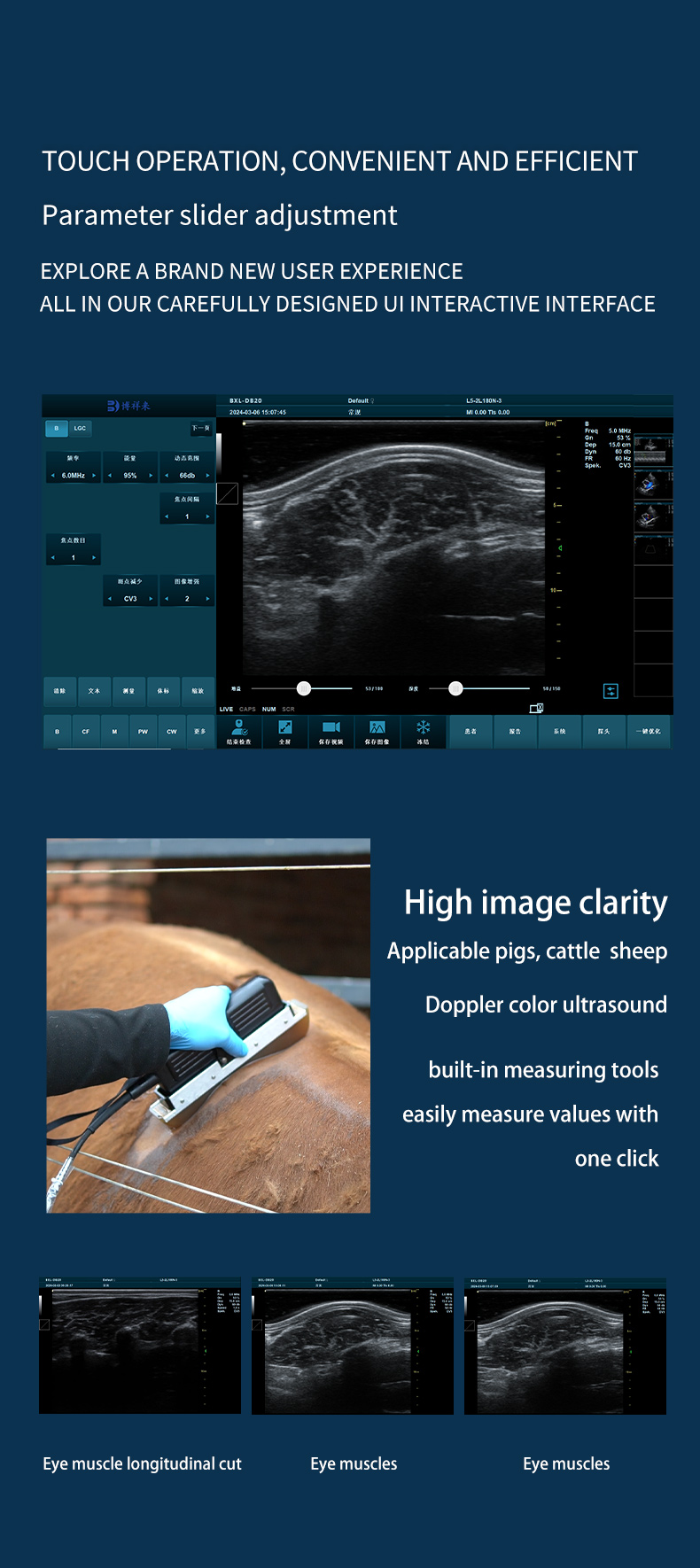

3.10 Imaging mode: color Doppler imaging system, B, B|B, 4B, B|M (M line position adjustable), M mode, tissue harmonic imaging (THI), pulse inversion harmonic imaging (iTHI), tissue specific imaging (TSI), convex array expansion imaging, linear array deflection/trapezoidal imaging, puncture enhancement, color blood flow (CF), power Doppler (PDI), directional power Doppler (DPDI), pulse Doppler (PW), continuous Doppler high pulse repetition frequency (CW, HPRF), B+CF color double-width real-time imaging, color M mode, B+PW, B+CF/PDI/DPDI+PW, CW

3.11 Number of host channels: 64 channels, Windows 10 system

3.12 Scanning mode: digital beamformer, electronic linear array, electronic convex array, electronic micro-convex, electronic phased array, animal-specific back fat linear array

3.13 Scan type: normal, composite extension, etc.

3.14 Full-domain synthetic aperture beamformer, real-time point-by-point dynamic receiving focusing technology

3.15 CF inspection: PRF, window width, window height, gain, frequency, color averaging, wall filtering, high PRF, packet size, color plate, spatial filtering, line density, baseline, pulse length, energy, Variance, color threshold, transparency, color priority, color flip, reduced display.

3.16 PDI inspection: deflection angle, PRF, window width, window height, gain, frequency, color averaging, wall filtering, packet size, energy, color plate, spatial filtering, dynamic range, line density, pulse length, color priority, color threshold, transparency, high PRF, reduced display.

3.17 PW inspection: angle correction, scanning speed, baseline, PRF, gain, volume, frequency, deflection angle, SV length, flip, automatic tracing, use of two-sync/three-sync, energy, wall filtering, signal level, dynamic range, color map, negative film, signal smoothing, average spectrum, high PRF, reduced display.

3.18 Image processing: multi-beam imaging; high line density scanning (adjustable); 8-segment segment gain TGC control; dynamic range: ≥120 dB; automatic gain control; M scanning speed adjustable; PW scanning speed adjustable; sound power adjustable; controllable frame correlation; Gamma correction; scanning range adjustable; up/down/left/right/black and white flip; image enhancement, edge enhancement; noise suppression; speckle suppression, dynamic focus

3.19 Image rotation: 0°, 90°, 180°, 270° rotation; image flip: up/down, left/right, image adjustment: focus adjustment, focus position and quantity adjustable. Image frame average adjustment, frame average adjustable. Spot reduction, with 5 adjustments.

3.20 Image display: 256 grayscale Scanning depth: ≥30cm

3.21 Total gain: 0-100 adjustable Left and right segment gain 8 adjustable levels.

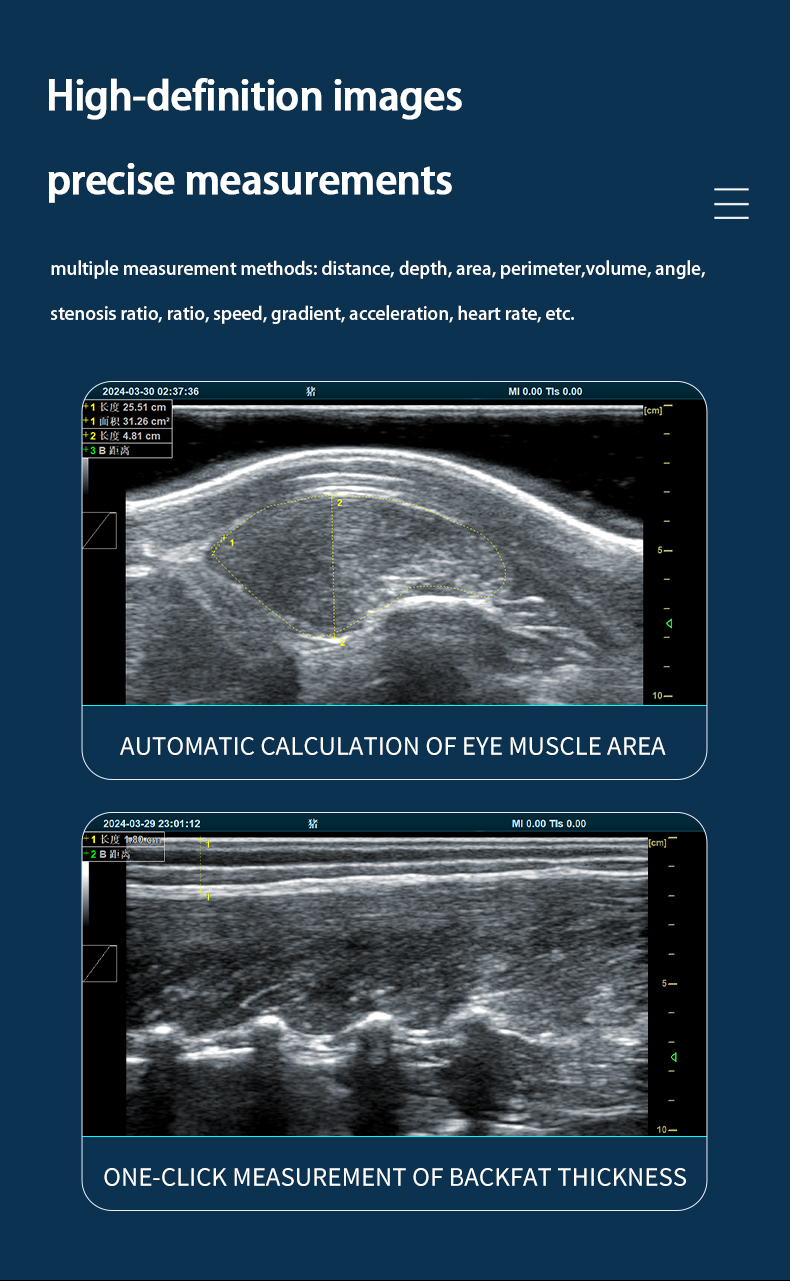

3.22 Conventional measurement and calculation: distance, depth, area, perimeter, volume, angle, stenosis ratio, ratio, speed, gradient, acceleration, heart rate, histogram, anatomy, IMT measurement. Can automatically generate various routine measurement result reports and print reports

3.23 Animal body marks: ≥24 types

3.24 Measurement calculation software package: animal-specific measurement package

3.25 The host is equipped with a stylus, wireless keyboard, and wireless mouse

3.26 With one-key full-screen function; system vertical screen display function

3.27 Positive and negative pulse harmonic imaging technology, real-time dynamic apodization technology

3.28 Battery: replaceable Working time: ≥3 hours Battery specification: 10000mAh AC power adapter charging or operation; Output: 14.4V DC 4A

3.29 Can store images and videos. Formats: AVI, JPG, BMP, PNG, DCM (DICOM), etc. Movie playback function is available.

3.30 Puncture guidance, with puncture line, scale ruler on the puncture line, center line on the puncture line, and puncture image enhancement processing.

3.31 Software language: English, Chinese, French, Spanish and other languages are available

3.32 Brightness: -50%-50% adjustable Contrast: -50%-50% adjustable

3.33 Patented product: Patent number: ZL 202330405248.6

IV. Optional probe types and parameters:

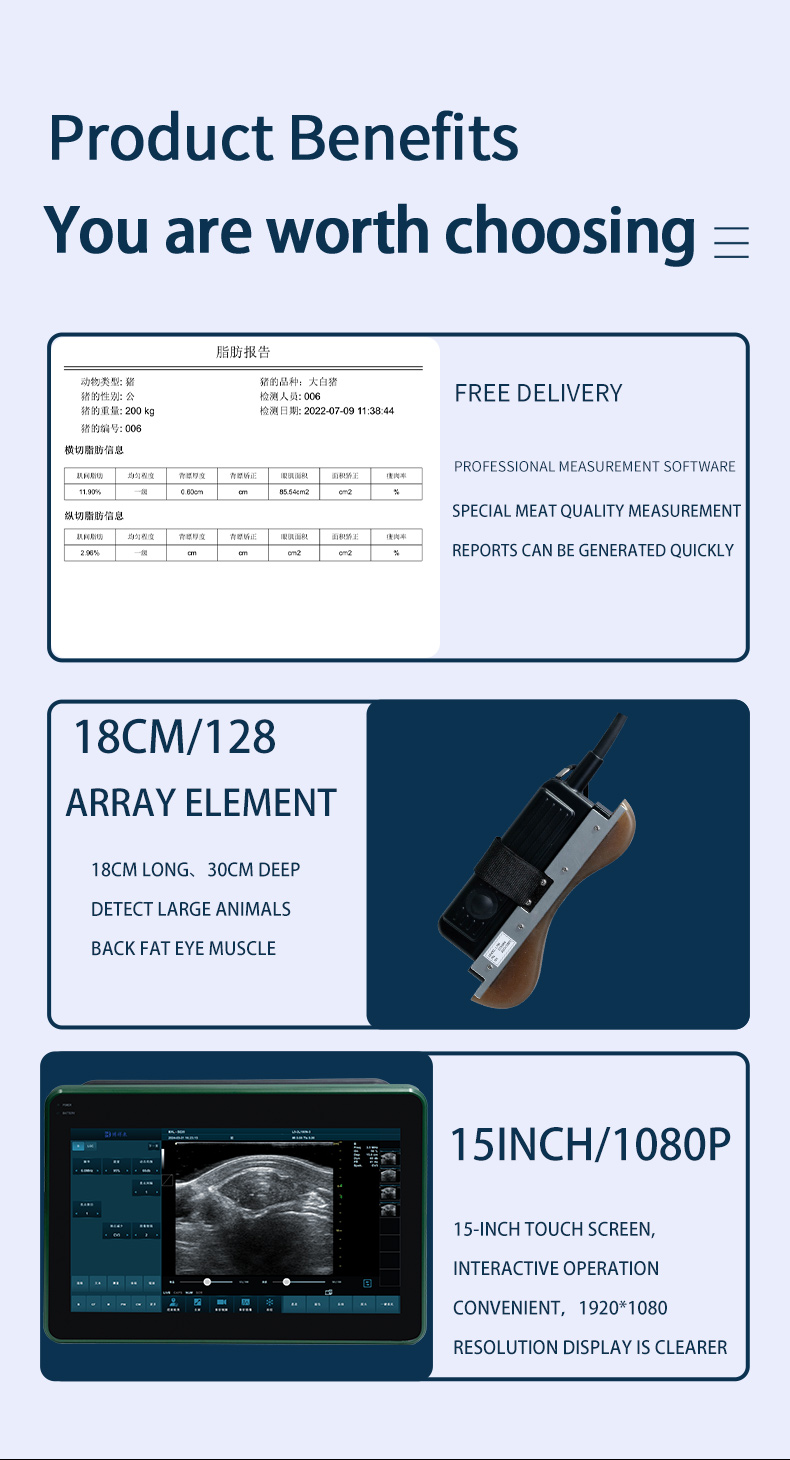

4.1, BXL3.5L15A, 16cm back fat eye muscle special probe

4.2, BXL6.5L128A, animal rectal probe

4.3, BXL7.5MHZR15, 7.5MHZ micro-convex probe

4.4, BXL6.0MHZR15, 6.0MHZ micro-convex probe

4.5, BXL-P7-3/P10, phased array probe

4.6, BXL7.5MHzL40, 7.5MHZ high frequency linear array

4.7, BXL3.5MHz C5-2/R60, 3.5MHZ large convex probe

Standard configuration:

Host 1 set

Probe 1 set

Lithium-ion battery 1 set

Adapter 1 set

Stylus 1 set

Instruction manual/certificate/warranty card 1 set

Coupon 1 set

Suitcase: 1 set

Optional accessories:

Wireless keyboard

Wireless mouse

ECG performance (optional function)
